Article Figures & Data
Figures
- Figure.

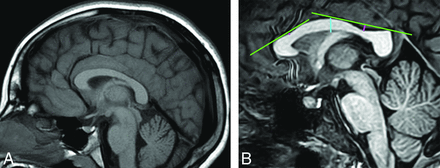

Midsagittal T1-weighted images. A, A normal corpus callosum with no notch. B, A corpus callosum with anterior and posterior notches measuring 1 and 3 mm in depth (pink lines), respectively. A “notch” was defined as a depression in the dorsal surface whose depth was at least 1 mm from a tangential green line to the surface of the CC. Notches are classified as either anterior or posterior on the basis of their relationship to the midcallosal body (blue line).
Tables
Review summary
FASD Non-FASD Control Group FASD (Excluded Due to Structural Abnormality) Brain MR imaging studies reviewed (No.) 59 875 37 Brain MR imaging studies with notches (No.) (%) 33 (55.9%) 554 (63.3%) 11 (29.7%) Posterior position (No.) (%) 23 (39%) 378 (43.2%) 10 (27%) Anterior position (No.) (%) 8 (13.6%) 139 (15.8%) 1 (2.7%) Undulating, >2 notches (No.) (%) 2 (3.4%) 37 (4.2%) 0 (0%)
